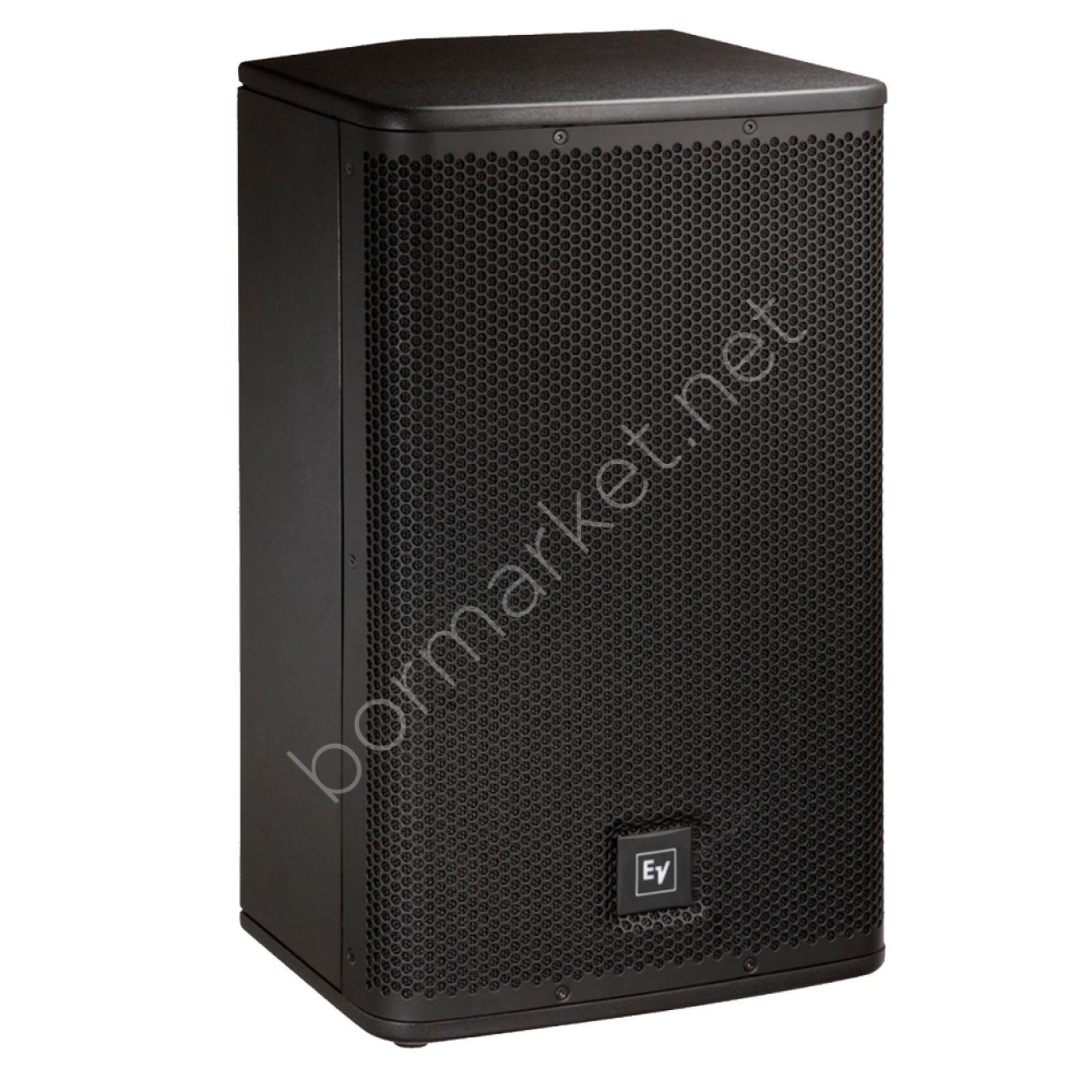

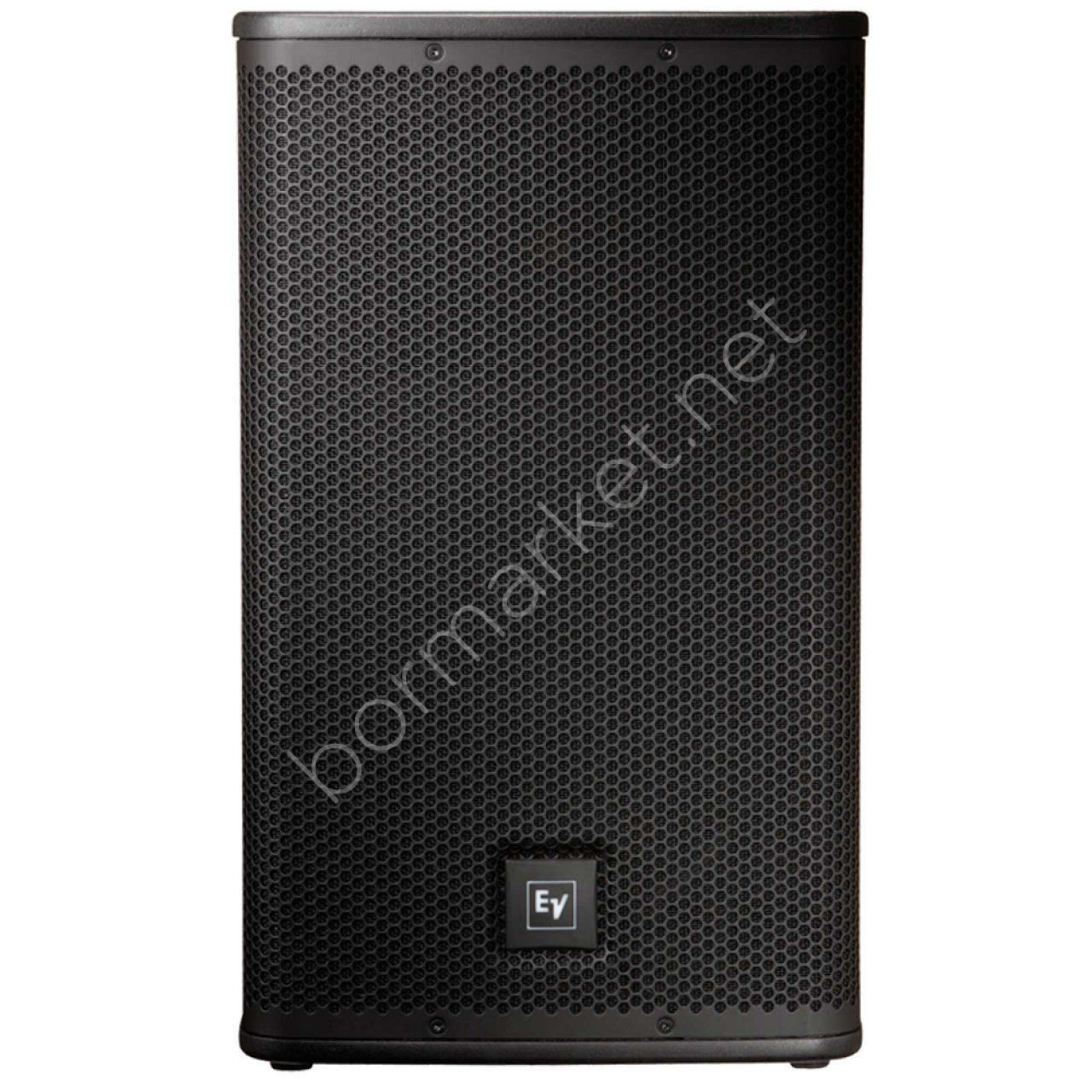

EV ELX112PPart of Electro-Voice's Live X series, the ELX112P Active Loudspeaker is designed with an Electro-Voice-engineered 12" woofer & 1.5" titanium compression driver. This self-contained powered system features components optimized for use with its integrated high-efficiency 1000W Class-D amplifier. The ELX112P has a bi-amplified design with 24dB/octave filter slopes & transducer protection, a selectable 100Hz high-pass filter for use with an external subwoofer, & exceptional crossover performance. It is easy to connect with 2 XLR/TRS combo jacks, 1 stereo RCA, & an XLR Link output, & has intuitive amplifier controls.Constructed of 9-ply, 15mm plywood with internal internally bracing, the ELX112P is sturdy yet completely portable. It has built-in side handles for to make setup, breakdown, & transport easier, can be pole mounted for stacking it on top of a acoustically matched Live X series sub, & has a 60° angled design so you can also use it as a floor monitor as well.
Electro-Voice ELX112P Specifications
Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
Color | Black |
Nominal Impedance | 8 Ω |
Power Rating | 1000 W |
Speaker Type | Full-range, two-way, wedges |
Woofer Size | 304.8 mm (12") |
Frequency Response (-3 dB) | 60 - 18000 Hz |
Frequency Response (-10 dB) | 50 - 20000 Hz |
Internal Crossover | Yes |
Max. SPL/1m (calc) | 132 dB |
Coverage (Nominal -6 dB) H | 90 ° |
Coverage (Nominal -6 dB) V | 50 ° |

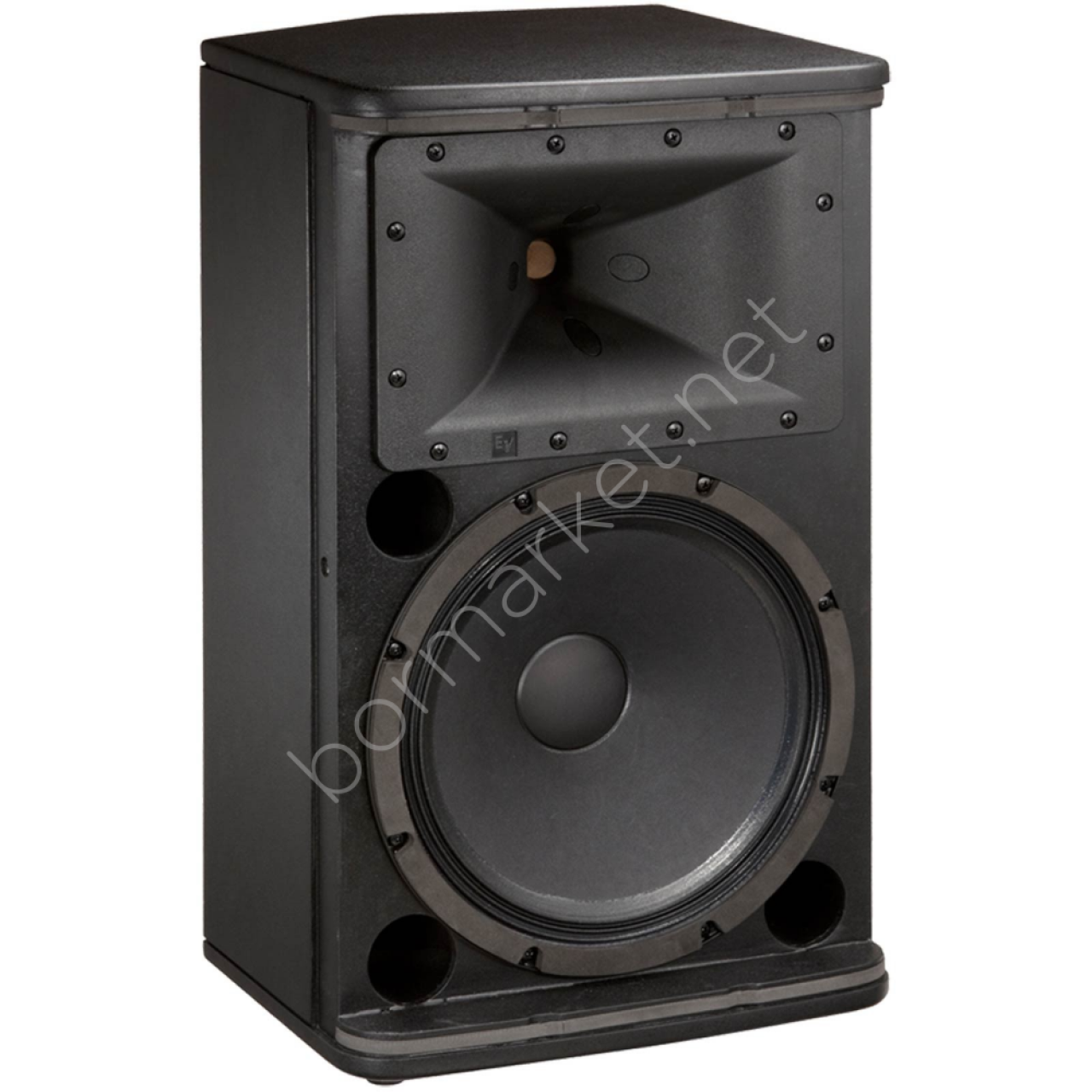

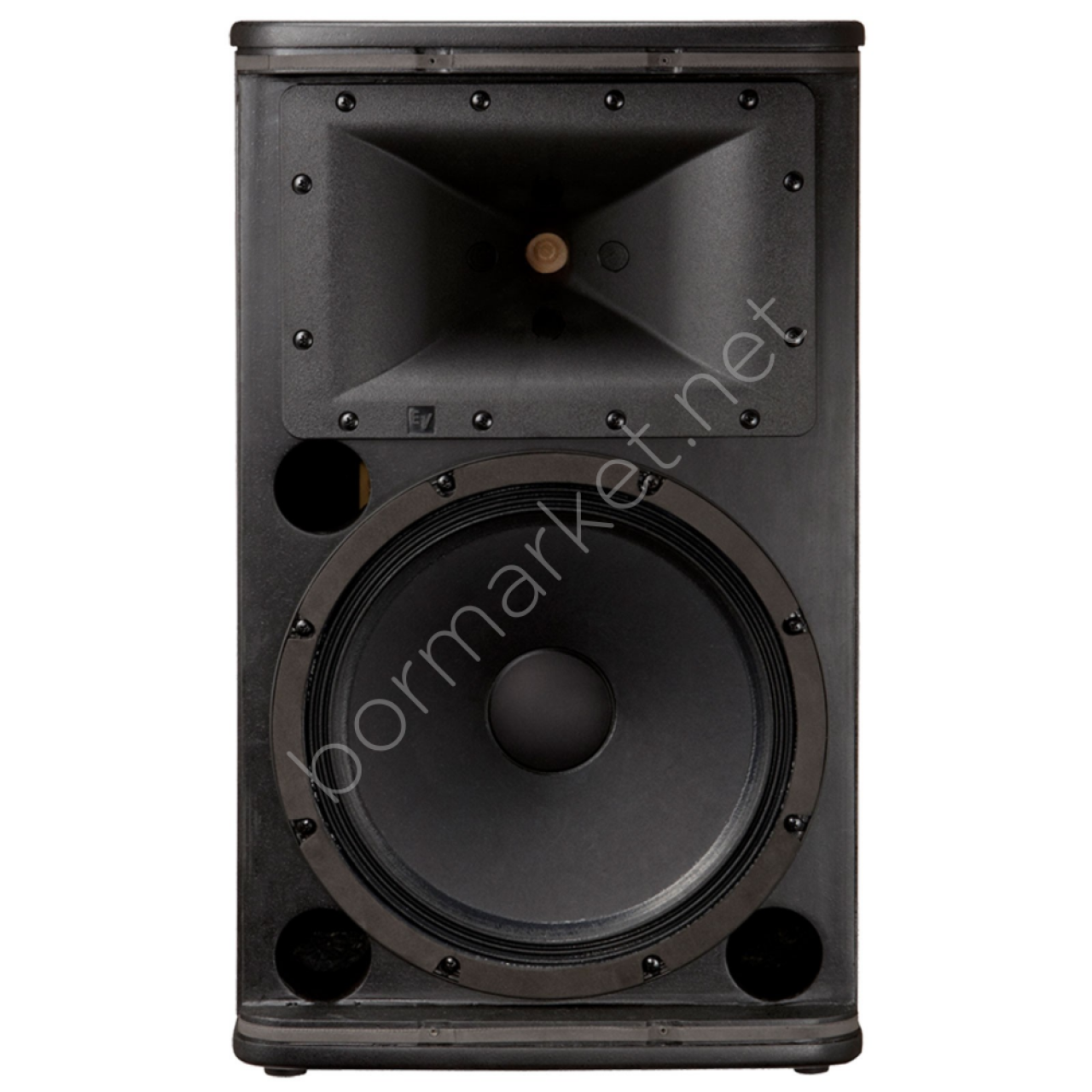

LF Transducer | (1) EVS-12K, 305mm (12") Woofer |
HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
Crossover Frequency | 1.7 k Hz |
Connector Type | Parallel Neutrik® NL4, (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output |
Grill | 18GA Steel with Black Powdercoat |
Height | 607 mm (23.9") |
Width | 362 mm (14.25") |
Depth | 340 mm (13.39") |
Weight Net | 16.8 kg (37.04 lbs) |
