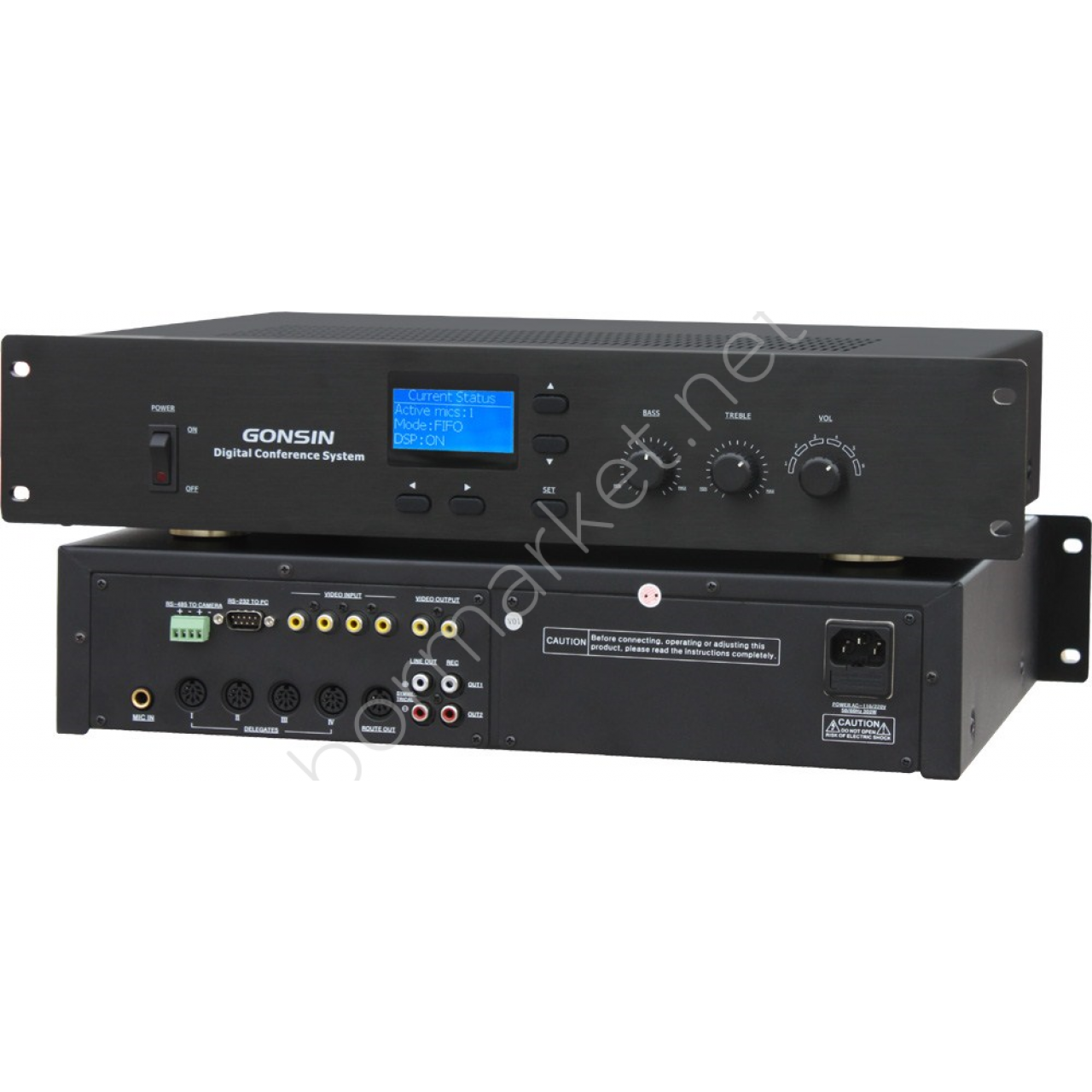

GONSIN TL-Z3 Central Control Unit

GONSIN TL-Z3 Central Control Unit

GONSIN TL Z3 - Central Control Unit ;KonferansTartışma ve Oylama için kullanılır, 60konferans üniteleri standart,1000 konferans birimlerini desteklemek üzere genişletilebilir. akustik feedback önleme , Dahilitizin/bas, 4x11Dahili video matrix switcher ,Dahili kablosuz mikrofon  sistemi için ses girişi MICIN ,1- 4delege mikrofon aynı anda etkin olabilir ,Otomatik video izleme, programlanabilir Konuşma süresi, Konferans ses kayıt ve video kayıt , PC iletişim: RS232 ,Video kamera iletişim:RS422/RS485 , Video kamera destek:4,Video izleme protokolü: PELCO-P9600/Sony-VISCA,AV matrix switcher girişi:RCAx4(1Vp-p,75Ω),AV matrix switcher çıkışı:RCAx2(1Vp-p,75Ω),RECOUT ses çıkışı : 0- 2.8V Vpp , Maksimum güç : 300W , Çalışma sıcaklığı : -20 50 Main features in stand-alone mode:

• 1 to 4 delegate microphones can be active simultaneously
• Selectable microphone mode: AUTO/FIFO/OPERATOR
• ID number writing for each unit using LCD on front panel
• Automatic video tracking with up to 4 dome cameras
• Built-in DSP processor for acoustic feedback prevention
• Built-in treble/bass compensation for better sound quality
• Built-in MIC IN audio input for wireless mic system

    Extented features under PC/software control:

• Centralized conference management
• Operator can allow or reject delegate request to talk
• Speaking time limit can be preset for conference units
• Delegate unit can be set to be vice-chairman (VIP) unit
• Attendance registration using IC cards or REG button
• Conference audio recording and video recording

    Technical Specifications:

• Standard 2U housing for 19" rack mounting
• Basic system capacity: 60-70 conference units
• Connection of conference units in up to 4 lines
• Each line connects up to 25 conference units
• Cable length is up to 100 metres for each line
• RS485 repeaters can be used to extend cable length
• Active delegate microphone limit: 1/2/3/4
• PC communication: RS232, Ethernet
• Video camera communication: RS485
• Video camera supported: up to 4
• Video tracking protocol: Pelco-P9600 / Sony-VISCA
• AV matrix switcher input: RCA x 4 (1Vp-p, 75Ω)
• AV matrix switcher output : RCA x 2（1Vp-p, 75Ω）
• MIC IN: 6.5mm jack, 0.775V
• REC OUT audio output: 0-2.8V Vpp
• S/N ratio: -95dB
• THD: < 0.3%
• Power supply: 220V/50Hz or 110V/60Hz, ±10%
• Maximum power: 300W
• Operating temperature: 0℃ to 45℃
• Storage temperature: -20℃ to 50℃
• Dimensions (W*D*H): 485×325×90mm
• Weight: 14 kg
