INTERM PP9113, 6 Mic.2 Stereo 1U

INTERM PP9113, 6 Mic.2 Stereo 1U

Features • 13 Inputs Including: - Six Low Impedance Bal. Mic Inputs - Cassette, Tuner and Auxiliary Inputs - One CD Input - One RIAA Equalized Turntable Input - One Chime Input - One Balanced Outboard Mixer Input • XLR Inputs (Mic 1-5) • Mic Six is a 1/4" TRS Connector • Phono and CD Inputs are Dual (Summed) RCA-Type • Slider Volume Controls for Inputs 1-11 and Master Controls • Signal Presence Indicators on Inputs 1-11 and Master Controls • Muting via Voice-Activated Priority of Mic1/2 Inputs and Chime (Adjustable Mute Level) • Bass and Treble Tone Controls • Separate Balanced XLR Line Output and Record Output (Premaster) • AC Mains or 24VDC Powered • Rack Mount (1RU)

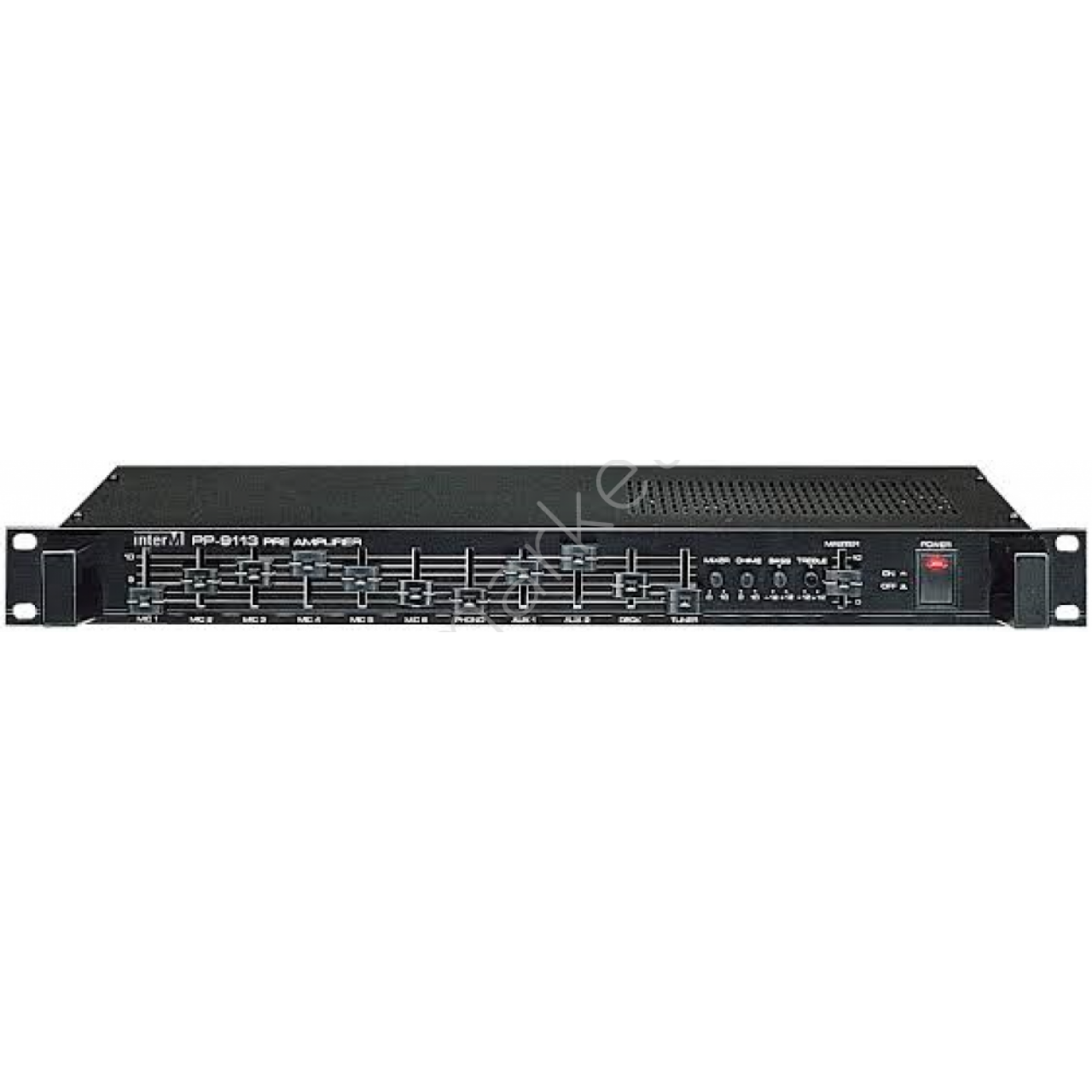

Description The PP-9113 is a versatile, high-performance mono mixer/pre-amplifier suited for installation in commercial and professional PA applications. It may be used as a standalone mixer or as an add-on to expand current mixing inputs. Features include 13 inputs, line and premaster recording outputs, input gain controls and bass/treble tone controls. The microphone inputs and line output are electronically balanced. Four input channels provide muting of other active channels for priority paging, chime or other important program material. The muting level is adjustable from 0% (no muting) to 100% (full override), allowing flexibility in mixing the priority inputs with program material. Individual LEDs indicate the presence of signal on the 11 main input channels, as well as the master channel. The PP-9113 may be powered by 100-120VAC or 220-240VAC 50/60Hz or 24VDC supply (for emergency operation). The unit is packaged in a low-profile 1.75” high (1RU) rack-mount enclosure.
