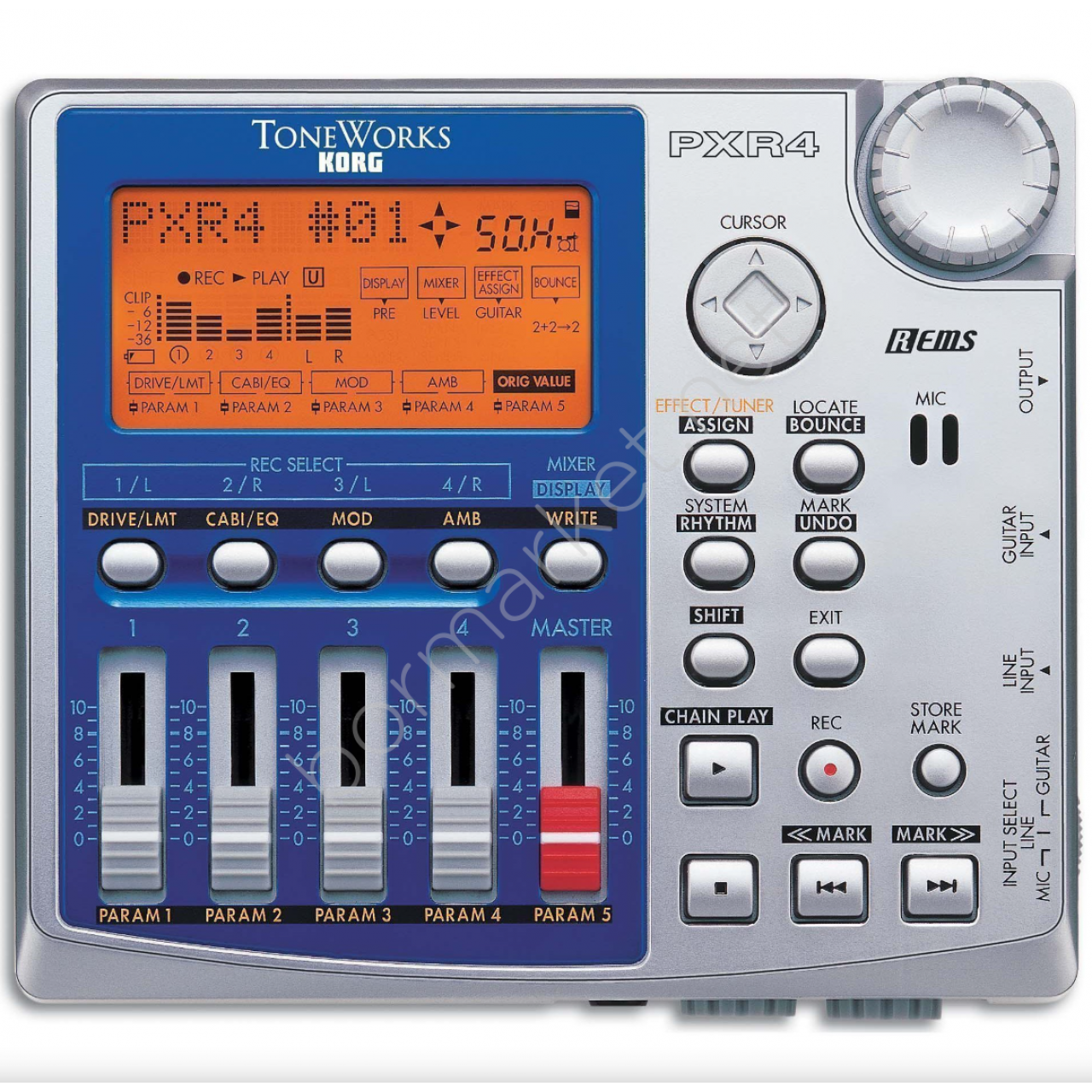

KORG PXR4 4+28 Channel Dijital Recorder

Recorder Tracks: 4 tracks x 8 virtual,
4 tracks simultaneous playback,
2 tracks simultaneous recording

Recording Format: 16-bit MPEG 1 Audio Layer 2 compressed, 32kHz

Recording Time:
Hi-quality = 11 min 15 sec (*max. 90 min, approximately)
Standard = 16 min 50 sec (*max. 135 min, approximately)
Economy = 33 min 50 sec (*max. 270 min, approximately)
(one track,16MB SmartMedia)
(*one track, 128MB SmartMedia)

Songs: 99 songs/per SmartMedia

Mark Points: 99 points per song

Tempo Range: 40 - 240 b.p.m.

Metronome Patterns: 32

Rhythm Patterns: 55

Editing: Track (Copy, Insert, Erase, Delete, Time Expansion/Compression), Song (Rename, Copy, Delete)

Counter/Locator Format:
Min/Sec/Msec,
Meas/Beat/Tick,
Free Time

Number of Undo/Redo Levels: 1

Sampling Frequency: 32 kHz

Mixer Section Structure: 4ch + 2ch

Effect Section Structure:
Guitar Effect x1,
Insert Effect x1,
Master Effect x1,
Final Effect x1

Effect: 100 preset, 100 user

Tuner Calibration: A=440

Detection Range: 27.5Hz~2093Hz (A0 - C7)

Card Media Slot: SmartMediaTM Slot (3.3V, 8MB - 128MB)

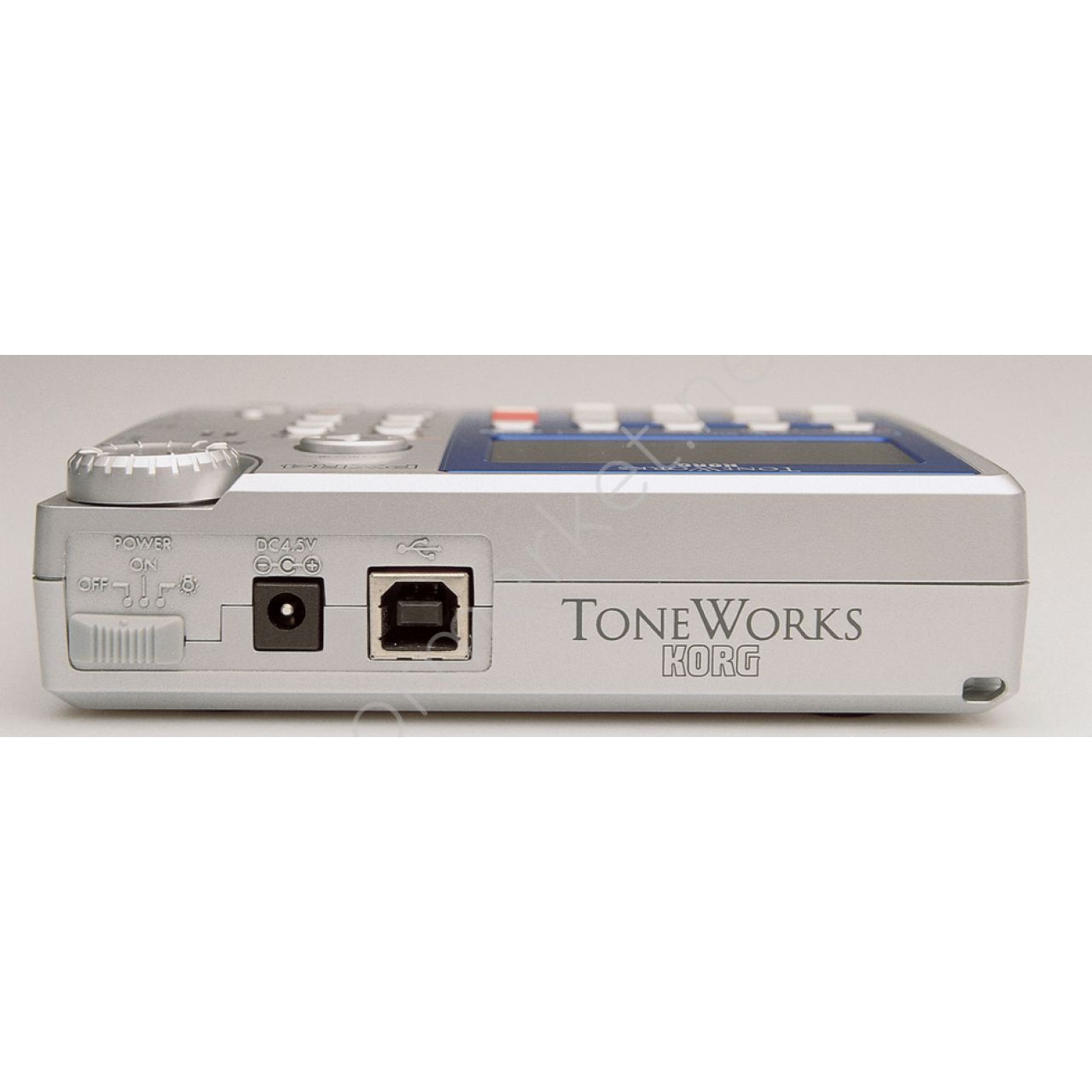

Power Supply: 2 AA size batteries or DC 4.5V AC/AC power supply

Power Consumption: 20W

Dimensions (W x H x D): 108 x 122 x 34mm (4.25 x 4.80 x 1.33 in.)

Weight: 260 g (0.57 lbs.)

Line In:
-50dBu @TRIM=max.,
-10dBu @TRIM=min.

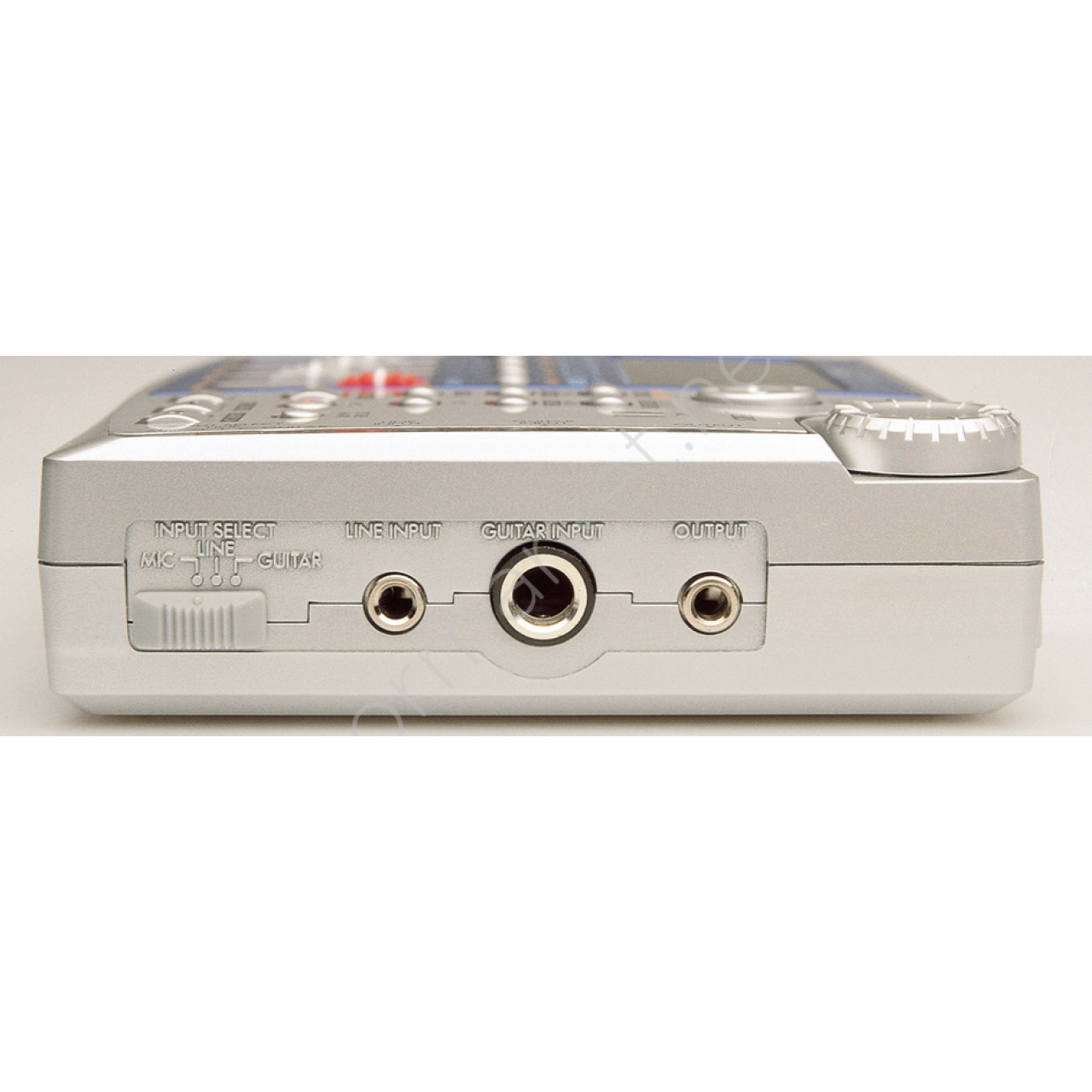

Guitar Input Connector: 1/4 in. phone jack

Guitar Input Impedance:
470k ohms (Low)
940k ohms (High)

Guitar Maximum Level:
+8dBu (Low)
+14dBu (High)

Guitar Nominal Level:
-44dBu@TRIM=max.,
-38dBu@TRIM=max.

-4dBu@TRIM=min.,
-2dBu@TRIM=min.

Guitar Source Impedance: 600 ohms

Line Input Connector: Mini stereo jack

Line Input Impedance: 10k ohms

Line Nominal Level:
-10dBu@TRIM=min.
-50dBu@TRIM=max.

Line Maximum Level: +2dBu

Line Source Impedance: 600 ohms

Line Output Connector: Mini stereo jack

NOT: ÜRÜNÜN ORJİNAL KUTUSU YOKTUR, ZARAR GÖRMEYECEK ŞEKİLDE PAKETLENİP TARAFINIZA KARGOLANIR.
